Class IP Address Version 4 in Computer Networking

Class IP Address Version 4 in Computer Networking. To set up or configure multiple computers to connect to a network it needs an IP address as an ID in the network .

To configure the IP Address is not arbitrary . As we know IP is Internet Protocol , is a protocol rules that govern data communication in the network , so it is necessary to configure the rule . IP Address also has rules .

IP addresses are divided from 2 versions , namely :

- IP AddressVersi 4

- IP Address Version 6

I just focus on the IP address version 4.

Simple overview of version 4 IP Address

Characteristics of version 4 IP Address :

- IP version 4 consists of 32 bits

- IP version 4 consists of 4 octets ( the first octet is the fourth octet far left and far right )

- 1 octet consists of 8 bits

- One octet into HostID and

- One again be HostID

CLASS IP ADRESS VERSION 4 IN COMPUTER NETWORKING

The first octet is the identity used class what so look good either yes

Writing rules version 4 IP address to be connected with each other are as follows :

1 . Class must be the same IP address

Class A

Class B

Class C

IP Address consists of a NetID and HostID . NetID is the identity in the network , while HostID an identity as a host or the identity of each computer . To be interconnected in a network :

- NetID must be the same

- HostID must be different

Examples of connection between client 1 and client 2 with class B

Client 1 is the corresponding IP 130.1.10.11

Client 2 is the corresponding IP 130.1.12.13

While the examples for the class C , its IP is 192.168.2.7 client 1 and client 2 corresponding IP is 192.168.2.8

2 . Netmask must be the same

If you want to configure IP addresses that are connected should also pay attention to netmasknya . In Windows , if we want to configure the IP address manually then there will be an IP netmask after Addressnya . Do I enter the IP address , once in the fourth octet press the tab key , the netmask will automatically appear based on the class used . But Linux can be written in the manual can also appear automatically as Windows .

Netmask for :

-Class A is 255.0.0.0

-Class B is 255.255.0.0

-Class C is 255.255.255.0

3 . The IP must not be 0 and must not be later than 255. Because there is a particular reason why can not fill in that number . Please search on google or reference tersendri just waiting for a post from me about it .

If there are less beg for criticism or suggestions by commenting below , so that I can correct the error.

How to setting static ip address in Mageia 3 using GUI

Today I post  how to setting ip address in Mageia 3 using GUI, with GUI you can setting static ip easier more using console, that is simple!

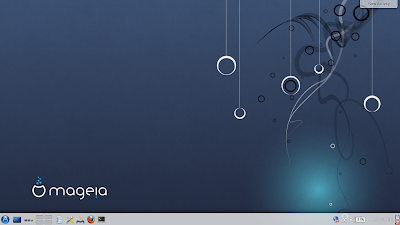

1. Turn on your PC or Computer and starting with Mageia 3

2. Go into Network Center. Simple way just click earth picture in bottom right. Then, configure your interface by click interface what you want to configure (for example : eth0)

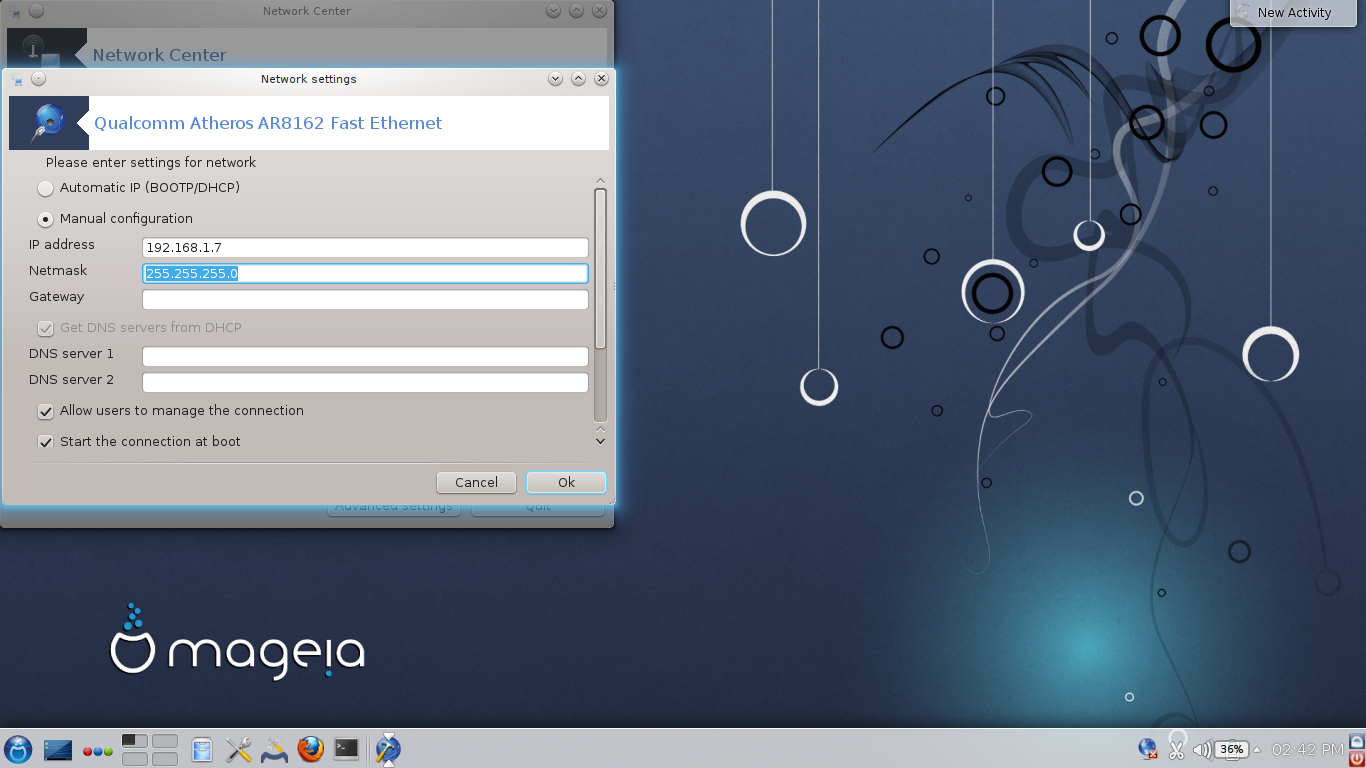

3.Fill your IP Address and Netmask. Then click OK



Read! Rules of configure IP Address (not yet to post)

4. Restart your network use terminal.
open your terminal and type :
su
(type your password)
service network restart

5. Turn off your firewall

In Mageia 3 (as I have) there are problems when you want to turn off your firewall. One of them, your firewall can't turn off with normally method.

the following is a way turn off your firewall :

a. Go in Mageia Control Center - Software Management - Install and remove software

b. search shorewall-ipv6 lalu uninstall that, just uncheck then apply

c. Go in Mageia Control Center - Security - set up firewall

d. Checklist Everything (no firewall). Automatically when you click ok, it need to install shorewall-ipv6. Install that



Read: How to turn off your firewall if you can't turn off that

Prove your firewall that really off. Just back to step 3 in the following is a way turn off your firewall

Finish, just type ping 192.168.1.7 in terminal. If reply that means you complete!

How to turn off your firewall if you can't turn off that [Mageia 3]

Yesterday, I posted  cara setting static ip address di mageia 3 menggunakan konsole  (how to configuration static ip address in mageia 3 using console) and today I post cara setting static ip address dengan menggunakan GUI (how to configuration static ip address using GUI method) you can Increase your knowledge and connect into Internet But, If you configuration between client you have to get problem about Firewall.
READ! How to Configuration IP Address Mageia 3 Client to Client On Mageia 3 there are problems to turn off your firewall. How to turn off your firewall if you can't turn off that ? You can follow step by step in below. Let's go!

a. Go to Mageia Control Center - Software Management - Install and remove software You must to remove your firewall software in your Mageia, I Mean shorewall. In Mageia 3 the name of firewall is Shorewall.

b. Search shorewall-ipv6 and then let's Unistall shorewall-ipv6 just uncheck and click Apply

c. Go to Mageia Control Center - Security - set up firewall

d. Checklist Everything (no firewall) automatically.. after you click OK, it needs to Install shorewall-ipv6
Note : (default repository) put on Instalation Disk of Mageia 3 in your CD-ROM,then Install it!

Prove that it works Go to (again) Mageia Control Center - Security - set up firewall Look at that everything (no firewall)

Complete! Thanks to read  How to turn off your firewall if you can't turn off that!
